Shaft hole retaining glue H680

loading

Share to:
Hansman shaft hole retaining glue can effectively ensure the tight fit between the shaft and the hole, and ensure that the shaft and the hole do not loosen during operation.The product is in liquid state and can be easily brushed on the joint surface of the shaft hole to ensure that the shaft hole will not be worn due to looseness during operation, causing abnormal noise and ensuring the normal operation of the equipment.The use of Hansman shaft hole retaining glue technology can effectively simplify the assembly process, from the original shaft and hole pressure assembly, shaft and hole high and low temperature thermal expansion and contraction assembly, to clearance fit, reducing equipment and energy consumption.
Availability:
Inquire

Product Description

Hansmann shaft hole retaining glue is divided into low viscosity retaining glue, medium viscosity retaining glue and high viscosity retaining glue according to the shaft and hole clearance.Low-viscosity holding glue is used for small clearance shaft and hole fitting, and high-viscosity holding glue is used for shaft and hole assembly with large clearance.Hansmann shaft hole retaining glue is suitable for the assembly of all metal shafts and hole parts, preventing the shaft hole from loosening due to clearance or vibration wear.

Shaft Hole Retaining Rubber Product Features

Model: H680    Specification: 50ml/bottle

                       H609
                          H680
                       H660
characteristic Testing Standard performance characteristic Testing Standard performance characteristic Testing Standard performance
外     观 Q/HSM02-2017 blue liquid 外     观 Q/HSM02-2017 blue liquid 外     观 Q/HSM02-2017 blue liquid
Viscosity (mPa·s) GB/T2794-1995 800 Viscosity (mPa·s) GB/T2794-1995 1500 Viscosity (mPa·s) GB/T2794-1995 6000
Density (g/cm3) GB/T13354-1992 1.1 Density (g/cm3) GB/T13354-1992 1.1 Density (g/cm3) GB/T13354-1992 1.1
Full solid time (h) Q/HSM02-2017 24 Full solid time (h) Q/HSM02-2017 24 Full solid time (h) Q/HSM02-2017 24
Shear strength (MPa) GB/T18747.2-2002 18 Shear strength (MPa) GB/T18747.2-2002 23 Shear strength (MPa) GB/T18747.2-2002 23
Maximum filling gap (mm) JB/T7311-2008 0.1 Maximum filling gap (mm) JB/T7311-2008 0.25 Maximum filling gap (mm) JB/T7311-2008 0.5
Working temperature (℃)
-50～150 Working temperature (℃)
-50～150 Working temperature (℃)
-50～150



           Product number

               Product Features

      The main purpose

             H609

             Low Viscosity Retaining Rubber

Small clearance shaft, hole fits cylindrical surface to hold

             H680

            Medium Viscosity Retaining Rubber

Universal clearance shaft, hole fits cylindrical surface for holding

             H660

            High Viscosity Retaining Rubber

Large clearance shaft, hole fit with cylindrical surface for holding

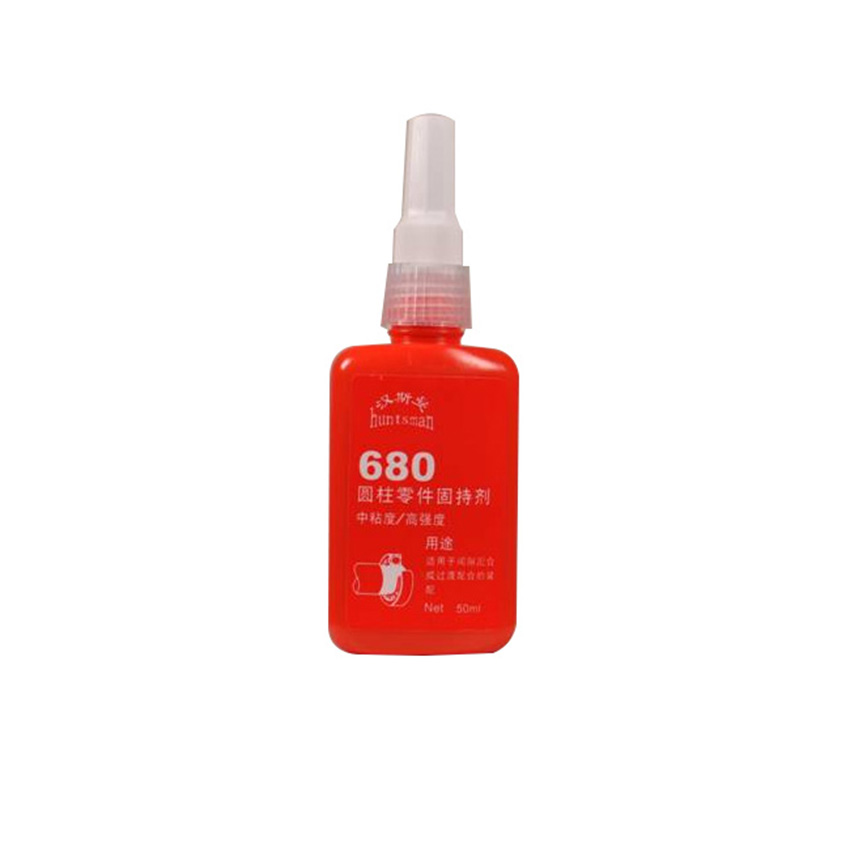

New Figure-H680-Size 850 square

Related scene application

New picture-H680-size 850 square-usage scene 1

New picture-H680-size 850 square-usage scene 2
