Product Description

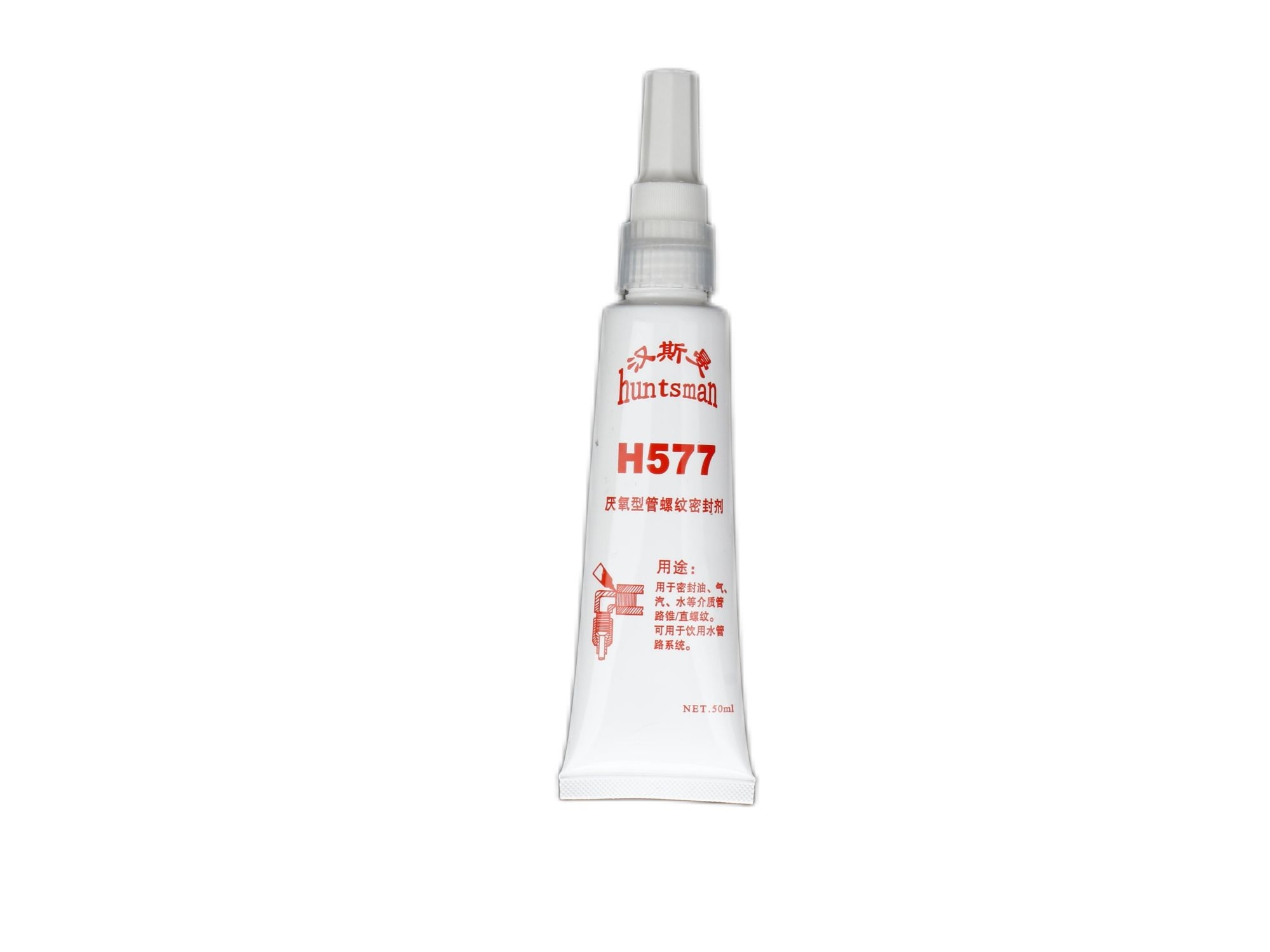

Hansman Pipe Thread Sealant H577
Hansman pipeline thread sealant is divided into low viscosity pipeline sealant, medium viscosity pipeline sealant and high viscosity pipeline sealant. Different viscosity sealants are selected according to the size of the pipe diameter. Viscosity sealant, high-viscosity sealant is used for large-diameter threaded connections.After the pipeline is sealed, within 5 minutes, the direction of the pipeline can be adjusted as required, which is the performance that other sealing materials do not have.
Pipe thread sealant product performance
Model: H577 Specifications: 50ml/piece
| H567 | H577 | |||||
| characteristic | Test standard | performance | characteristic | Test standard | performance | |
| Exterior | Q/HSM02-2017 | white paste | Exterior | Q/HSM02-2017 | red | |
| Density (g/cm3) | GB/T13354-1992 | 1.1 | Viscosity (mPa s) | GB/T2794-1995 | 13000 | |
| Fixed time (min) | Q/HSM02-2017 | 50 | Density (g/cm3) | GB/T13354-1992 | 1.1 | |
| Full solid time (h) | Q/HSM02-2017 | 24 | Fixed time (min) | Q/HSM02-2017 | 45 | |
| Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 52 | Full solid time (h) | Q/HSM02-2017 | 24 | |
| Working temperature(℃) | -50～200 | Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 52 | ||
| Working temperature(℃) | -50～150 | |||||
| H545 | H569 | |||||
| characteristic | Test standard | performance | characteristic | Test standard | performance | |
| Exterior | Q/HSM02-2017 | red | Exterior | Q/HSM02-2017 | red | |
| Viscosity (mPa s) | GB/T2794-1995 | 2800 | Viscosity (mPa s) | GB/T2794-1995 | 1400 | |
| Density (g/cm3) | GB/T13354-1992 | 1.1 | Density (g/cm3) | GB/T13354-1992 | 1.1 | |
| Fixed time (min) | Q/HSM02-2017 | 25 | Fixed time (min) | Q/HSM02-2017 | 25 | |
| Full solid time (h) | Q/HSM02-2017 | 24 | Full solid time (h) | Q/HSM02-2017 | 24 | |
| Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 52 | Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 52 | |
| Working temperature(℃) | -50～150 | Working temperature(℃) | -50～150 | |||
Product number | Product Features | The main purpose |
H569 | Low viscosity thread sealant | For thread seals of fine pitch pipes under 1/2 inch |
H545 | Medium viscosity thread sealant | For 1/2-1 inch fine pitch pipe thread seal |
H577 | High viscosity thread sealant | For fine thread seals over 1 inch |
H567 | Paste thread sealant | For various specifications of coarse thread seal |
