Lithium Battery Thermal Conductive Adhesive 8309

loading

Share to:
Hansman lithium battery heat conduction glue ensures that the heat emitted by the lithium battery is transferred to the condensing radiator during use, preventing vehicle accidents caused by overheating of the lithium battery during use.Low-viscosity paste heat-conducting adhesive, brushed on the aluminum plate of the battery, after curing at room temperature, it will condense into an elastic rubber body.Thermally conductive adhesives are divided into structural adhesives and potting thermally conductive adhesives. The bonding strength can be adjusted according to customer material requirements. The products comply with EU REACH and ROHS environmental certifications.
Availability:
Inquire

Product Description

Lithium battery thermal conductive adhesive product 8309

Hansmann Lithium Thermal Conductive Adhesives are divided into thermally conductive adhesives and thermally conductive potting adhesives, which have excellent adhesion and anti-peeling performance to aluminum, metal plates, ceramics, etc., and effectively prevent loosening of bonding and positioning.Because a proper amount of heat-conducting resin and heat-conducting substrate are added to the material, it can effectively ensure the heat dissipation of the battery.

Product characteristics of lithium battery thermal conductive adhesive (after curing)


Model: 8309 (A, B two-component)       Specifications: 400ml

8307
8309
characteristic Testing Standard performance characteristic Testing Standard performance
A component appearance
blue liquid A component appearance
blue liquid
B component appearance
pale yellow liquid B component appearance
pale yellow liquid
Mixing ratio (volume ratio)
1:1 Mixing ratio (volume ratio)
1:1
Shear strength (Mpa) AI-AI bonding, curing for 7 days GB/T7124-2008 7 Shear strength (Mpa) AI-AI bonding, curing for 7 days GB/T7124-2008 3
Pull-out strength (MPa) AI-AI bonding, curing for 7 days GB/T7124-2008 10 Shear strength (Mpa) PET-PET bonding, cured for 7 days GB/T7124-2008 2
Flame retardant grade (sandwich structure) GB/T2408-2008 V0 Flame retardant grade (sandwich structure) GB/T2408-2008 V0
Thermal conductivity (W/(mK)) (GB/T 10297-2015) 0.8 Thermal conductivity (W/(mK)) (GB/T 10297-2015) 0.8
Working temperature (℃)
-40-80 Working temperature (℃)

-40-80


Product number

    Product Features

      The main purpose

H8307

Thermally Conductive Adhesive

For battery aluminum plate bonding

H8309

Thermally Conductive Potting Compound

Used for positioning potting of battery components

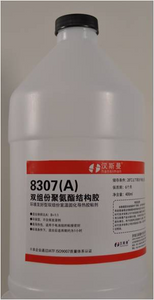

Lithium battery thermal conductive adhesive product 8307


Related scene application

Application Scenario of Lithium Battery Thermal Conductive Adhesive
