Product Description
Lithium Battery Thermal Conductive Adhesive 8307
Hansman lithium battery thermal conductive adhesive is divided into thermal conductive adhesive and thermal conductive potting adhesive. Hansman 8307 is a lithium battery adhesive, which has excellent adhesion and anti-peeling performance to aluminum, metal plates, ceramics, etc. Effectively prevent loosening of adhesive positioning.Because a proper amount of heat-conducting resin and heat-conducting substrate are added to the material, it can effectively ensure the heat dissipation of the battery.The bonding strength can be adjusted according to the customer's material requirements, and the product complies with EU REACH and ROHS environmental protection certification.
Product characteristics of lithium battery thermal conductive adhesive (after curing)

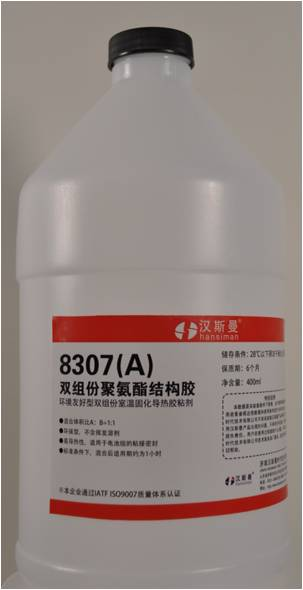

Model: 8307 (A, B two-component) Specification: 400ml/bottle
H8307 | ||
characteristic | Testing Standard | performance |
A component appearance | blue liquid | |
B component appearance | pale yellow liquid | |
Mixing ratio (volume ratio) | 1:1 | |
Shear strength (Mpa) AI-AI bonding, curing for 7 days | GB/T7124-2008 | 7 |
Pull-out strength (MPa) AI-AI bonding, curing for 7 days | GB/T7124-2008 | 10 |
Flame retardant grade (sandwich structure) | GB/T2408-2008 | V0 |
Thermal conductivity (W/(mK)) | (GB/T 10297-2015) | 0.8 |
Working temperature (℃) | -40-80 | |
Product number | Product Features | The main purpose |
H8307 | Thermally Conductive Adhesive | For battery aluminum plate bonding |
H8309 | Thermally Conductive Potting Compound | Used for positioning potting of battery components |
Related scene application
