Expansion shock absorber series

loading

Share to:
Hansmann expansion shock-absorbing glue is filled between the panel and the rib during vehicle assembly to ensure that the panel and the rib will not rub, collide and cause noise and damage during the operation of the vehicle.The paste-like liquid shock-absorbing glue is applied between the ribs and the panel. During the high-temperature baking process, the shock-absorbing glue expands at high temperature, solidifies into a porous elastomer, and fully fills the space between the two plates.When the panel is hit by wind pressure or external force, the cured shock-absorbing rubber elastomer is squeezed or stretched, avoiding the direct impact of the two metal plates.
Availability:

Product Description

Hansman expansion shock absorber series products

 According to the expansion rate, Hansman expansion shock absorber is divided into high expansion rate shock absorber, medium expansion rate shock absorber, and low expansion rate shock absorber. According to the thickness of the panel, different expansion rate shock absorbers are selected. When it is larger, use low-expansion shock-absorbing glue, and when the panel skin is thin, use high-expansion shock-absorbing glue.

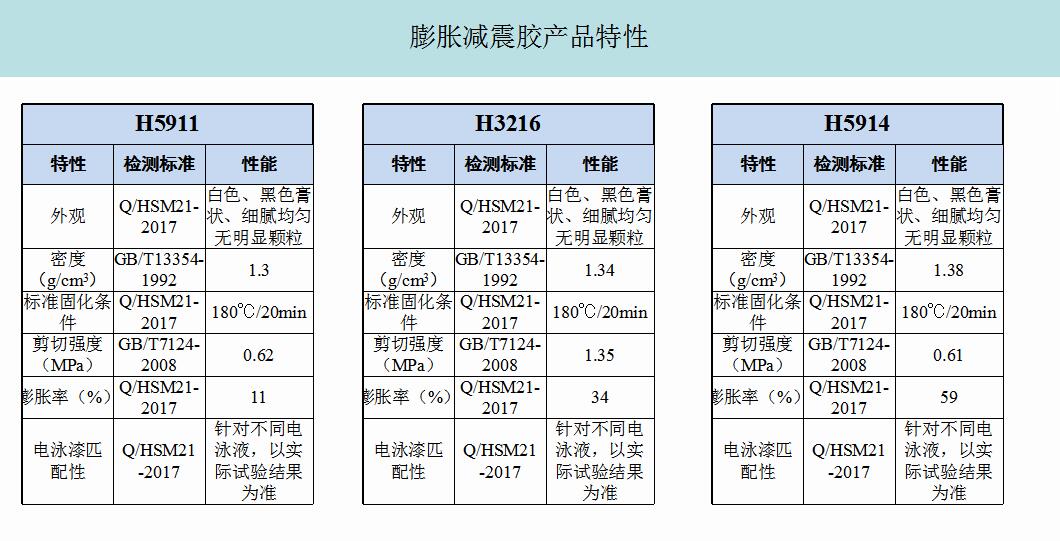

Product performance of expansion shock absorber

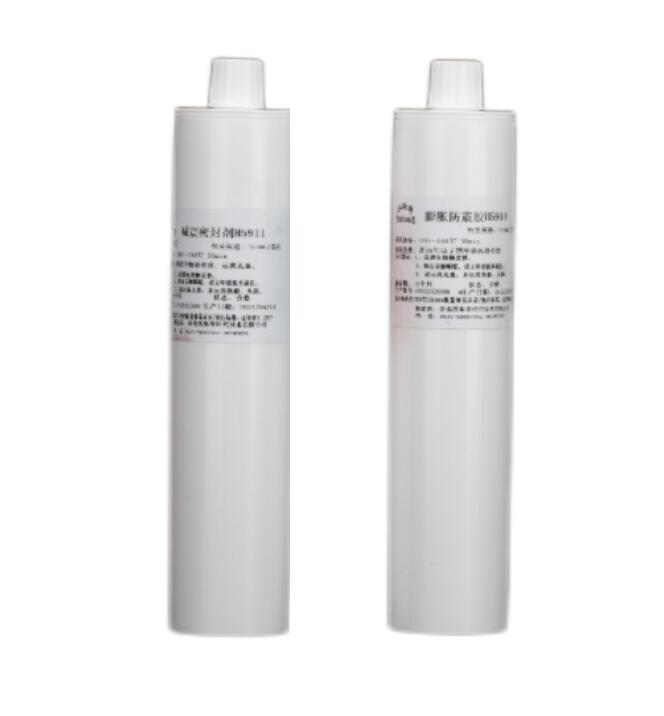

Model: H5911/H5914/H3216           Specifications: 310ml/piece      250KG/barrel

H5911
characteristic Test standard performance
Exterior Q/HSM21-2017 White, black paste, fine and uniform without obvious particles
Density (g/cm3) GB/T13354-1992 1.3
Standard curing conditions Q/HSM21-2017 180℃/20min
Shear strength (MPa) GB/T7124-2008 0.62
Expansion rate (%) Q/HSM21-2017 11
Electrophoretic paint compatibility Q/HSM21-2017 For different electrophoresis solutions, the actual test results shall prevail

H5914
characteristic Test standard performance
Exterior Q/HSM21-2017 White, black paste, fine and uniform without obvious particles
Density (g/cm3) GB/T13354-1992 1.38
Standard curing conditions Q/HSM21-2017 180℃/20min
Shear strength (MPa) GB/T7124-2008 0.61
Expansion rate (%) Q/HSM21-2017 59
Electrophoretic paint compatibility Q/HSM21-2017 For different electrophoresis solutions, the actual test results shall prevail
H3216
characteristic Test standard performance
Exterior Q/HSM21-2017 White, black paste, fine and uniform without obvious particles
Density (g/cm3) GB/T13354-1992 1.34
Standard curing conditions Q/HSM21-2017 180℃/20min
Shear strength (MPa) GB/T7124-2008 1.35
Expansion rate (%) Q/HSM21-2017 34
Electrophoretic paint compatibility Q/HSM21-2017 For different electrophoresis solutions, the actual test results shall prevail



_MG_8854

Expansion shockproof glue H5914-250kg

Related scene applications

Hansman expansion shock absorber application scenario
