Product Description
Hansmann expansion shock absorber
According to the expansion rate, Hansman expansion shock absorber is divided into high expansion rate shock absorber, medium expansion rate shock absorber, and low expansion rate shock absorber. According to the thickness of the panel, different expansion rate shock absorbers are selected. When it is larger, use low-expansion shock-absorbing glue, and when the panel skin is thin, use high-expansion shock-absorbing glue.
Product characteristics of expansion shock absorber

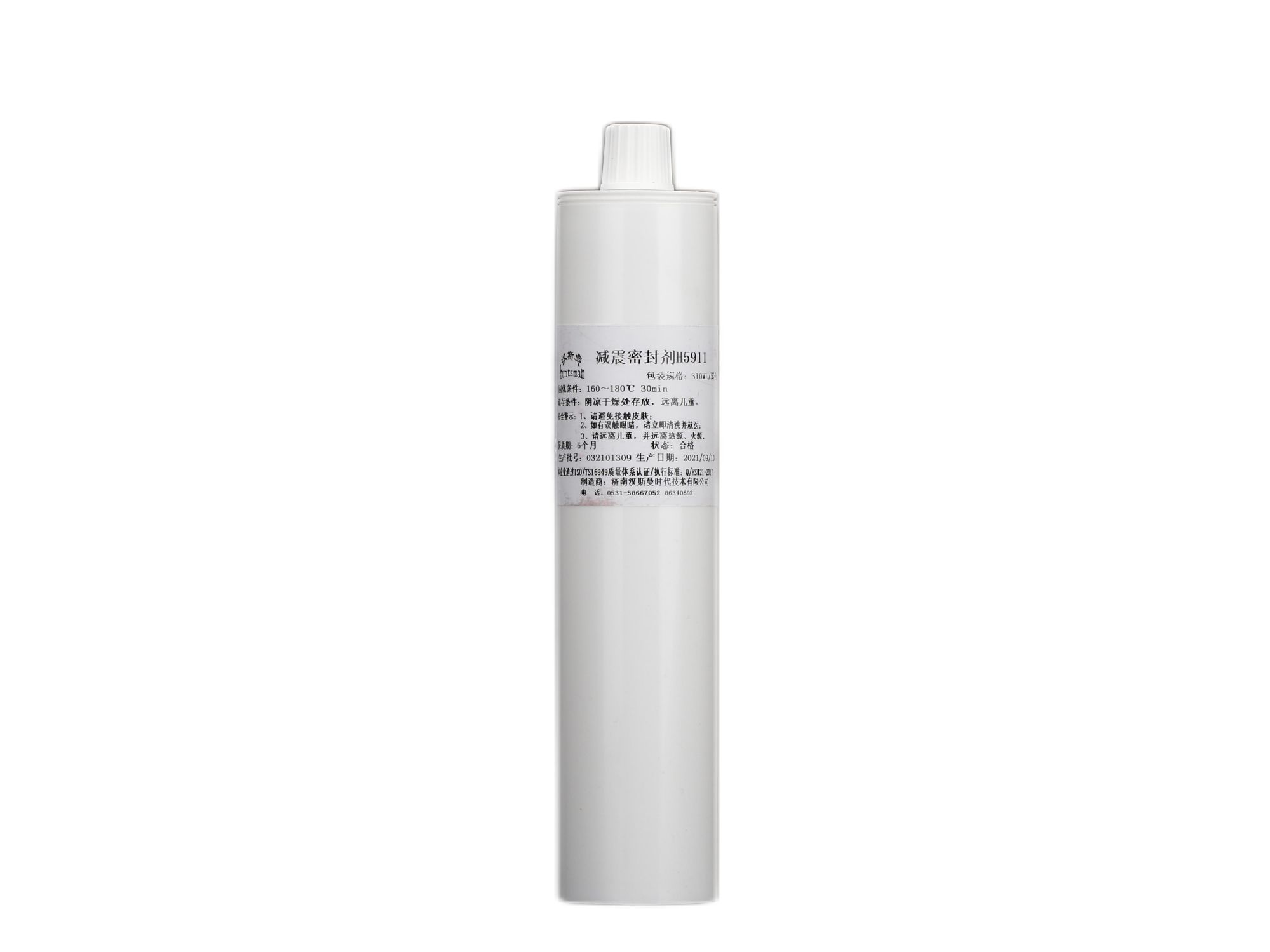

Model: H5911 Specification: 310ml
| H5911 | H5914 | |||||
| characteristic | Test standard | performance | characteristic | Test standard | performance | |
| Exterior | Q/HSM21-2017 | White, black paste, fine and uniform without obvious particles | Exterior | Q/HSM21-2017 | White, black paste, fine and uniform without obvious particles | |
| Density (g/cm3) | GB/T13354-1992 | 1.3 | Density (g/cm3) | GB/T13354-1992 | 1.38 | |
| Standard curing conditions | Q/HSM21-2017 | 180℃/20min | Standard curing conditions | Q/HSM21-2017 | 180℃/20min | |
| Shear strength (MPa) | GB/T7124-2008 | 0.62 | Shear strength (MPa) | GB/T7124-2008 | 0.61 | |
| Expansion rate (%) | Q/HSM21-2017 | 11 | Expansion rate (%) | Q/HSM21-2017 | 59 | |
| Electrophoretic paint compatibility | Q/HSM21-2017 | For different electrophoresis solutions, the actual test results shall prevail | Electrophoretic paint compatibility | Q/HSM21-2017 | For different electrophoresis solutions, the actual test results shall prevail | |
| H3216 | ||
| characteristic | Test standard | performance |
| Exterior | Q/HSM21-2017 | White, black paste, fine and uniform without obvious particles |
| Density (g/cm3) | GB/T13354-1992 | 1.34 |
| Standard curing conditions | Q/HSM21-2017 | 180℃/20min |
| Shear strength (MPa) | GB/T7124-2008 | 1.35 |
| Expansion rate (%) | Q/HSM21-2017 | 34 |
| Electrophoretic paint compatibility | Q/HSM21-2017 | For different electrophoresis solutions, the actual test results shall prevail |
The main purpose
Product number | Product Features | The main purpose |
H5911 | Low expansion rate shock absorber | Greater than 1mm thickness sheet metal plate shock absorption |
H3216 | Medium expansion rate shock absorber | Universal sheet metal damping |
H5914 | High expansion rate shock absorber | Less than 1mm thick sheet metal plate shock absorption |
