Product Description

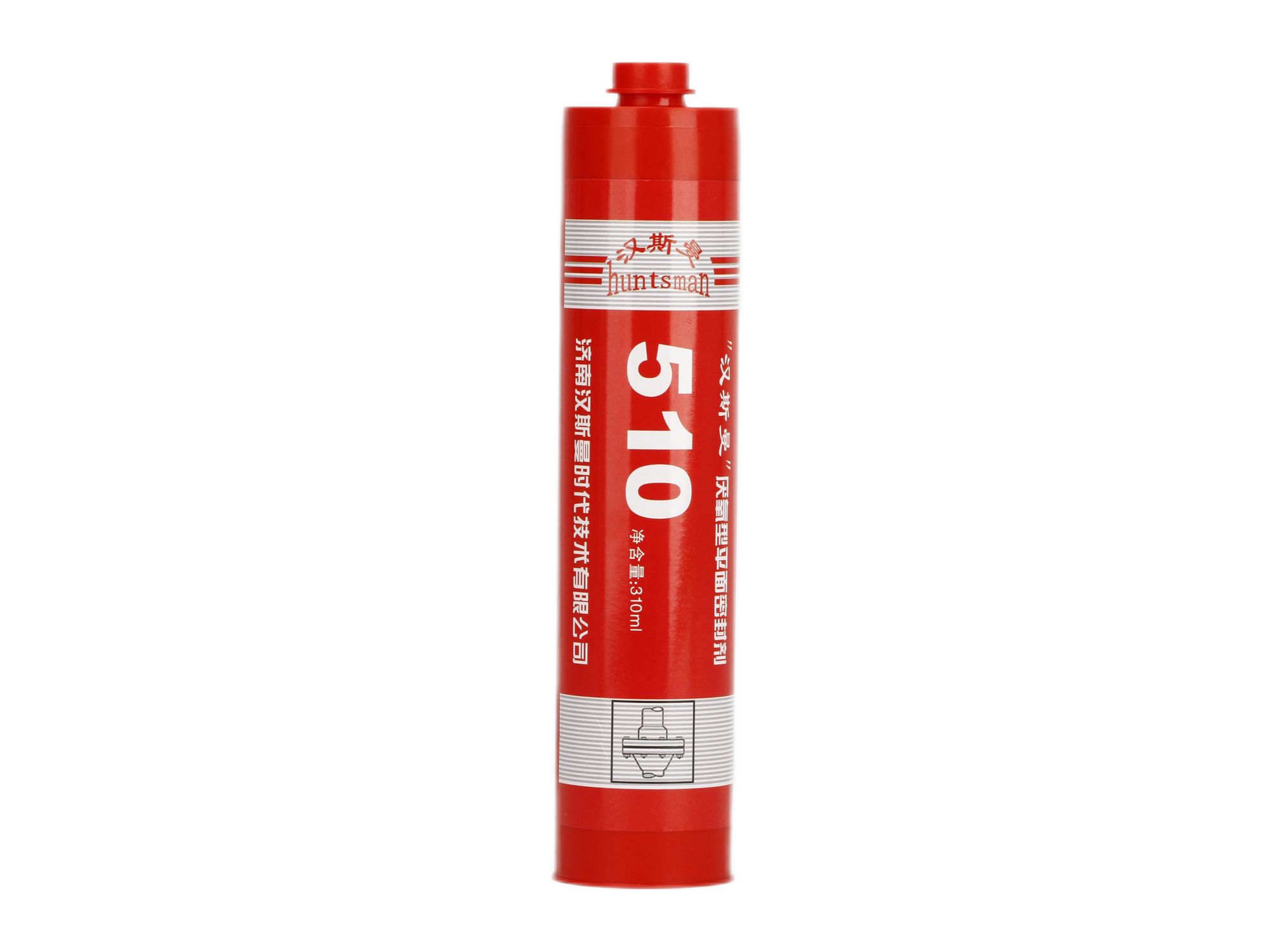

Model: H510 Specifications: 310ml/piece
| H510 | H515 | H518 | ||||||||
| characteristic | Test standard | performance | characteristic | Test standard | performance | characteristic | Test standard | performance | ||
| Exterior | Q/HSM02-2017 | red paste | Exterior | Q/HSM02-2017 | red paste | Exterior | Q/HSM02-2017 | red paste | ||
| Density (g/cm3) | GB/T13354-1992 | 1.1 | Density (g/cm3) | GB/T13354-1992 | 1.1 | Density (g/cm3) | GB/T13354-1992 | 1.1 | ||
| Fixed time (min) | Q/HSM02-2017 | 45 | Fixed time (min) | Q/HSM02-2017 | 45 | Fixed time (min) | Q/HSM02-2017 | 45 | ||
| Full solid time (h) | Q/HSM02-2017 | 24 | Full solid time (h) | Q/HSM02-2017 | 24 | Full solid time (h) | Q/HSM02-2017 | 24 | ||
| Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 35 | Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 28 | Hydraulic sealing pressure after curing (MPa) | JB/T7311-2008 | 21 | ||
| Maximum filling gap (mm) | JB/T7311-2008 | 0.25 | Maximum filling gap (mm) | JB/T7311-2008 | 0.25 | Maximum filling gap (mm) | JB/T7311-2008 | 0.25 | ||
| Working temperature(℃) | -50～150 | Working temperature(℃) | -50～150 | Working temperature(℃) | -50～150 | |||||
Hansmann flat sealant can effectively seal the joint surface of the gearbox and flange to prevent the leakage of lubricating oil, gas, water and other media. Before the flat sealant is cured, it is a toothpaste-like substance and is filled in the gap between the two joint surfaces. , and changes with the change of the shape of the gap, so that the two joint surfaces form an integrated seal.
